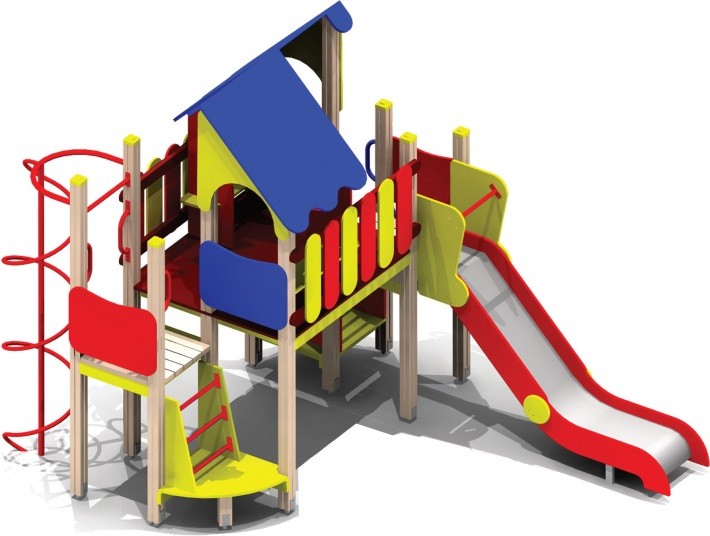

Easily accessible device type Length 4570 mm Width 3150 mm Height 3360 mm Height 2150 mm free fall

General Notes to the set
1 Structural elements made of glued laminated timber (squared with dimensions of 100 mm x 100 mm with rounded edges). All structural beams have longitudinal cutter on each side. The components are finished at the top with plastic caps.
2 The device embedded in the substrate for galvanized steel anchors, concreted in the ground.
3 All wooden parts are painted with acrylic paints spray forming an elastic layer with UV coating.
4 All components are made of plywood spray-painted with acrylic paints forming a flexible layer with UV coating.
5 Elements made of thick-walled steel tubes with a diameter of 30 mm powder coated.
6 Screws galvanized structural columns, protected with plastic caps.
7 Slots connectors covered with plastic caps.
8 Non-slip platform made of waterproof plywood formwork thickness of 25 mm.
9 Slide made of: Base - Stainless steel sides - plywood 25 mm thick spray painted with acrylic paints.

Technical description of the elements included in the

1 roofless tower with a platform at a height of 125 cm.
2 boarding ladder made of powder coated steel tubing at a height of 125 cm.
3 slide at a height of 125 cm; shoe made of stainless steel, the support structure made of steel, the sides filled with waterproof plywood.
4 large tower with a pitched roof and a platform at a height of 130 cm and seats made of plywood.
5 Sides made of colored waterproof plywood.
6 roofless tower with a platform at a height of 125 cm.
7 fireman pipe spiral steel tube powder coated.
8 boarding ladder made of powder coated steel tubing at a height of 125 cm.
